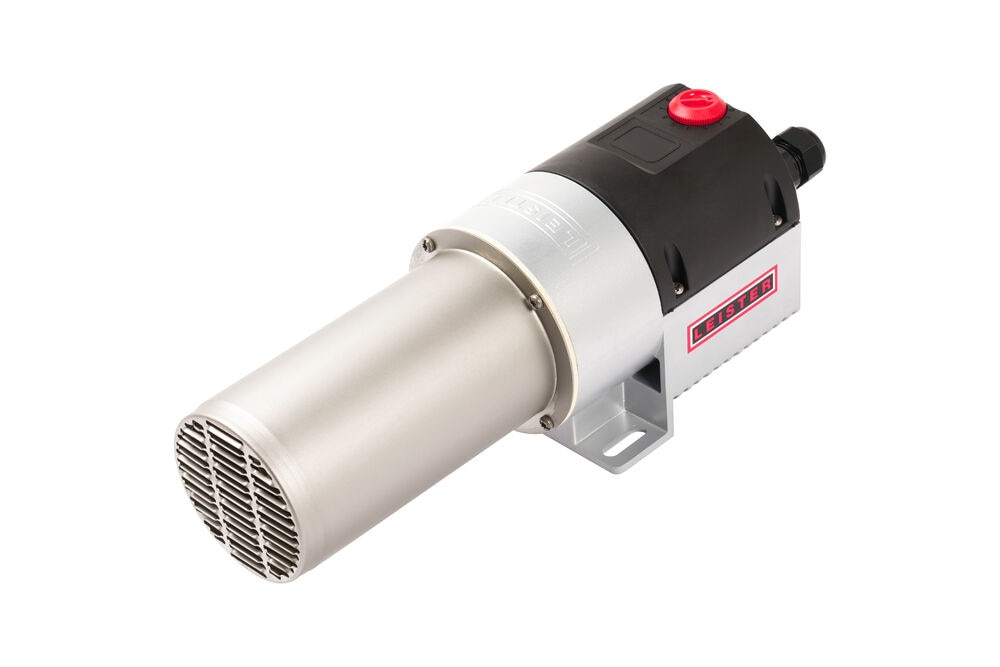

AIR HEATER - LHS 61L Premium

Name: AIR HEATER - LHS 61L Premium
Brand: Leister
SKU: 143.722
Price: 144,999.00 INR
Availability: InStock

₹ 144,999.00

Tax included.

Power

Quantity

Description

Leister LHS 61L PREMIUM - 143.485

Includes a 92 mm (3.62 in) heating tube
Durable and robust housing
Continuously variable control with potentiometer
Patented heating element and device protection

DETAILS - Professional hot air heater

The powerful LHS 61L PREMIUM air heater is easily integrated into industrial and commercial production lines with its 16kW-strong performance. The device is optimally suited for process heat in production lines and areas with individual temperature control. All LEISTER-LHS models have an overheating protection for the entire device and heating element. This can be connected to an external relay with the alarm output and thus ensure additional safety even in continuous operation.

The heat output of the LHS 61L PREMIUM can be continuously adjusted by means of a user-friendly, rotary potentiometer. Lastly, the air heaters are suitable for continuous operation with the associated external blower.

Technical Specification:

PHASES	3x
VOLTAGE	230 - 480 V
CURRENT	7 - 25 A
POWER	5000 - 16000 W
MAX. AIR OUTLET TEMPERATURE	650 °C
MIN. AIR FLOW	390 - 1250 l/min
MAX. AIR INLET TEMPERATURE	65 °C
MAX. AMBIENT TEMPERATURE	65 °C
AIR TEMPERATURE CONTROL	Open loop
OVERHEATING PROTECTION	Yes
ALARM OUTPUT	Normally open contact
MAX. INLET PRESSURE	100 kPa
NOZZLE CONNECTION Ø	92 mm / 3.6 in
DISPLAY	No
LENGTH	363.0 mm
WIDTH	116.0 mm
HEIGHT	136.0 mm
WEIGHT	3.65 kg
CONFORMITY MARK	CE
SAFETY MARK	S+
PROTECTION CLASS	I

HIGHLIGHTS - High-performance air heater

EASILY INTEGRATED - Compatible

The LHS 61L PREMIUM is easily integrated into a production system or machine due to its robust and small housing, just like its predecessors. The device can be securely fitted with the existing mounting plates.

DURABLE - Strong housing

The housing, which consists of cast aluminum, is particularly durable and suitable for work under difficult conditions.

EFFICIENT - Aerodynamic heating tube

With a protective tube diameter of 92 mm (3.62 in), the heat exchanger is particularly efficient and heats up quickly to the desired temperature.
