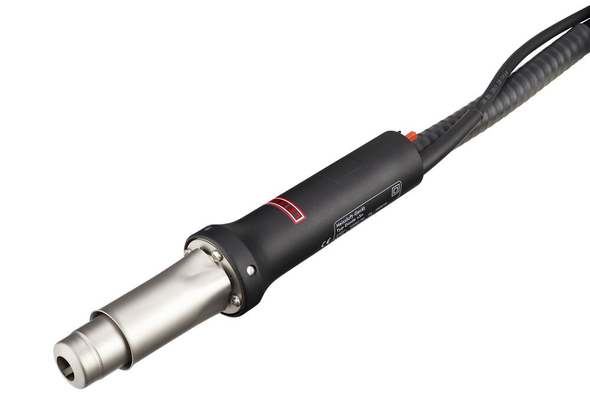

PLASTIC WELDING PEN - DIODE S - 230V/1600W

Load image into Gallery viewer, PLASTIC WELDING PEN - DIODE S - 230V/1600W

PLASTIC WELDING PEN - DIODE S - 230V/1600W

Name: PLASTIC WELDING PEN - DIODE S - 230V/1600W
Brand: Leister
SKU: 101.282
Price: 59,129.00 INR
Availability: InStock

₹ 65,159.00

Tax included.

Nozzle

Quantity

Description

Leister Diode S - 230V/1600W

Particularly handy and easy for assembly work
Electronic heating element cover
Cooled protective tube
Digital temperature control
It can be combined with AIRSTREAM, MINOR or ROBUST

DETAILS - Increased mobility

The DIODE S is particularly easy and convenient to use, thanks to the air hose connection for an external Leister blower like MINOR, ROBUST or AIRSTREAM. Using its rotary knob, the temperature can be manual adjusted to the respective plastic welding needs, from 20° C to 600° C. A large selection of quick welding nozzles and drawing nozzles enable a pleasant welding process with the hot air tool.With external Leister blowers such as MINOR, ROBUST or AIRSTREAM, the DIODE S is a powerful welding device that delivers quality work despite its compact size and light weight. The hot air tool is available with an attachment for push-fit nozzles, as well as for screw-on nozzles.

Technical Specification:

VOLTAGE	230 V; 100 V; 120 V; 200 V
FREQUENCY	50/60 Hz
POWER	1400 - 2000 W
TEMPERATURE	20 - 600 °C
TEMPERATURE SETTING STEPLESS	Yes
AIR HOSE LENGTH	3.0 m
DISPLAY	No
OUTDOOR USE	Yes
NOZZLE CONNECTION Ø	31.5 mm / 1.25 in; M14
LENGTH	256.0 mm
DEVICE DIAMETER	57 mm
HANDLE DIAMETER	40 mm
WEIGHT	0.46 kg
PLUG	CN, 2 poles, 10A; EU, 2 poles, 16A; JP, 2 poles, 15A; US, 2 poles, 15A, polarized; CH T11, 2 poles, 10A; AU, 2 poles, 10A; CEE yellow, 3 poles, 16A; without plug
APPROVALS	CE
PROTECTION CLASS	II

HIGHLIGHTS - Proven and robust

VERSATILE - Push-fit or screw-on nozzles

The DIODE S is available in a design for push-fit nozzles, as well as for screw-on nozzles.

SAFE - Cooled air tube

Occupational safety is a top priority at Leister. This is why the DIODE S has a cooled air tube, which is two different variants depending on the application.

POWERFUL - More energy

The DIODE S from Leister is available in various classes with different heating capacities, depending on requirements and application.

*Accessories are not included. Additional accessories can be ordered here.
